Basic Data

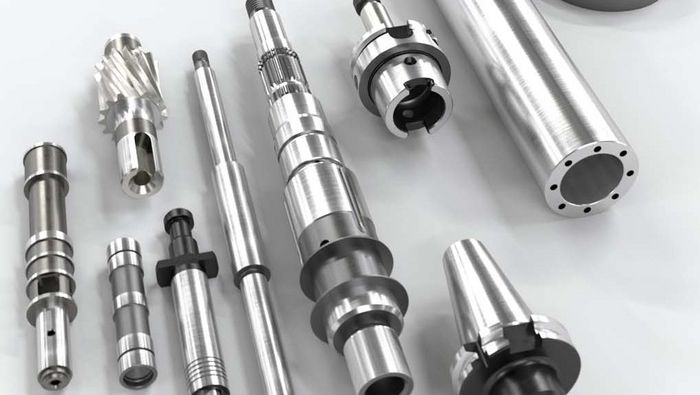

The S33 is a CNC universal cylindrical grinding machine for the individual and batch production of medium-sized workpieces. It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs).
Changing over from grinding between centres to live spindle grinding is particularly easy on this machine. The new wheelhead with two motor spindles enables grinding of even more complex workpiece geometries in a single clamping. Its foundation is a machine base made of solid Granitan® S103.

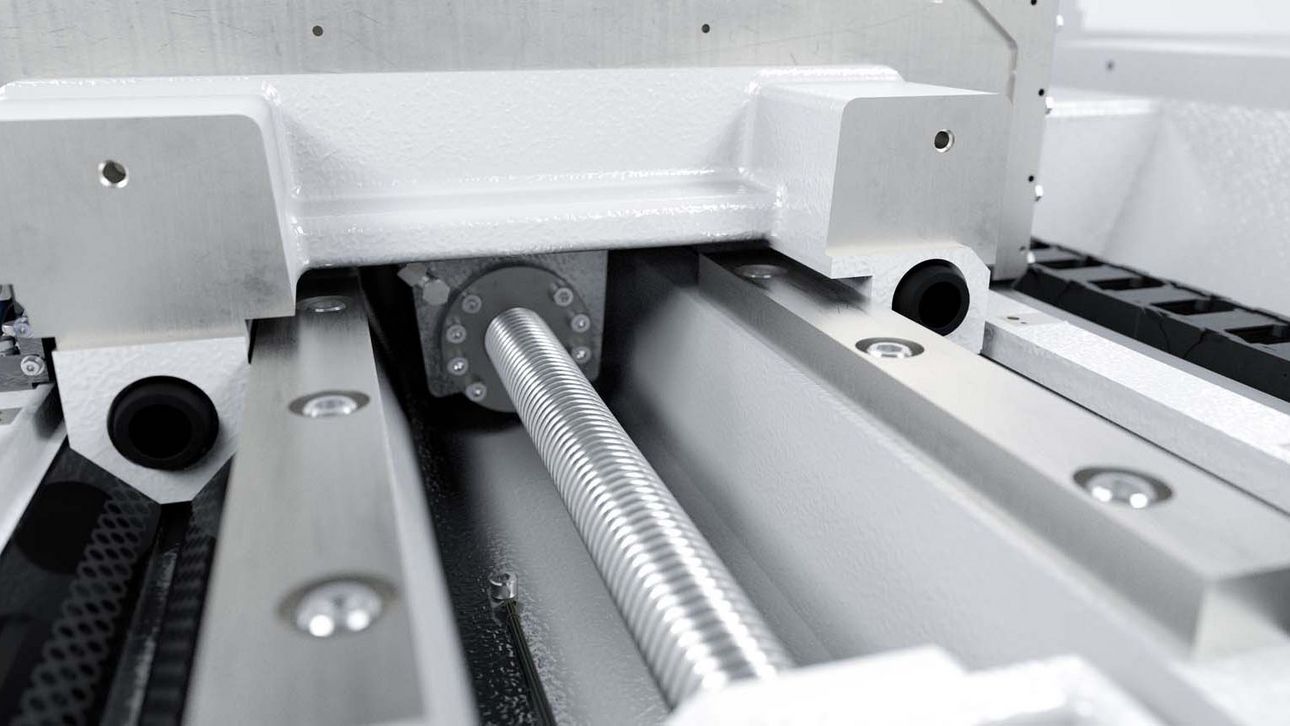

Images
Hardware / Software
Hardware:
- Wheelhead versions:
- Turret wheelhead with up to 2 external grinding spindles and 1 internal grinding spindle. Automatic swivel with 1° Hirth serration.
- External wheelhead with grinding wheel right, 0° / 15° / 30° - Frequency-controlled motor grinding spindles for external and internal grinding

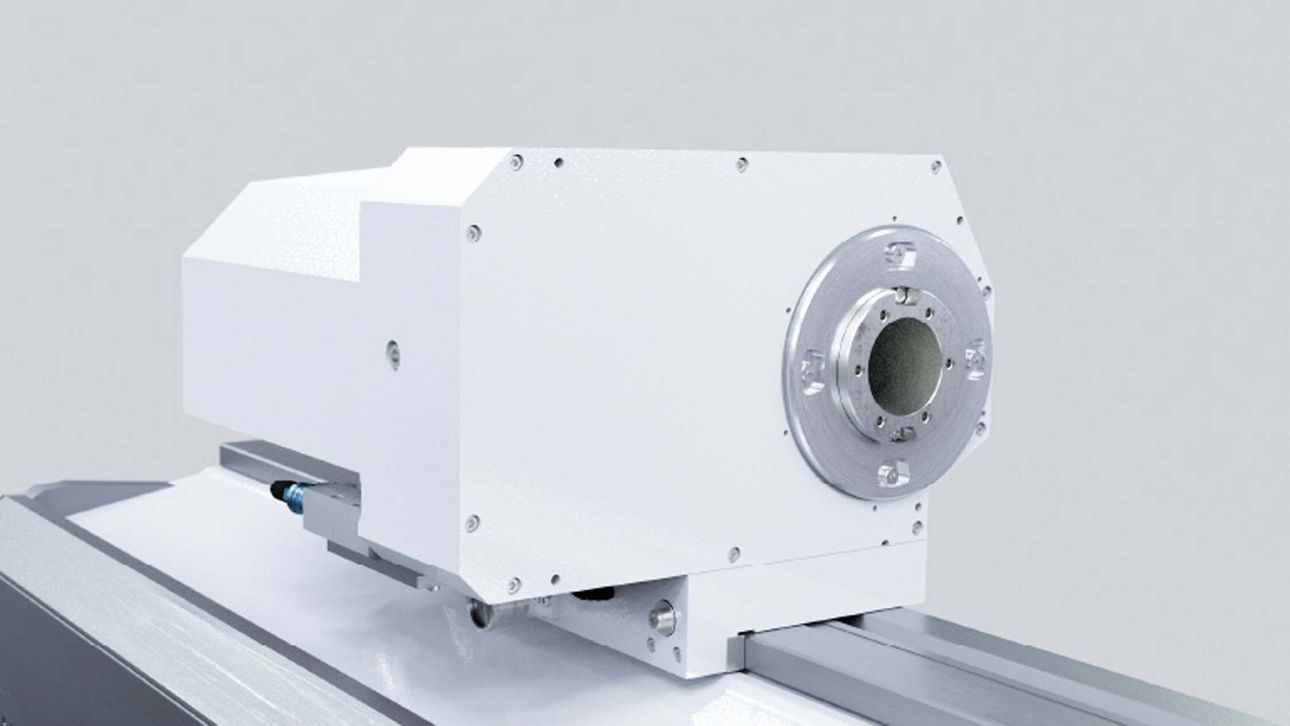

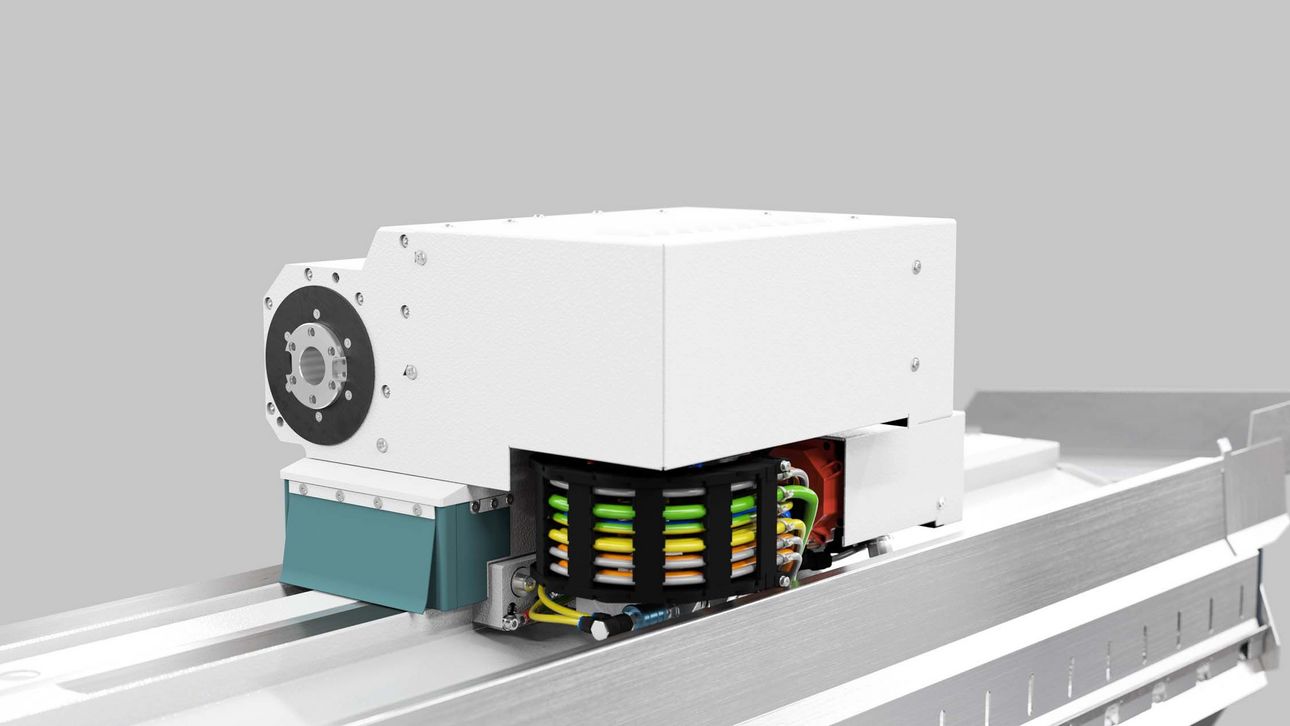

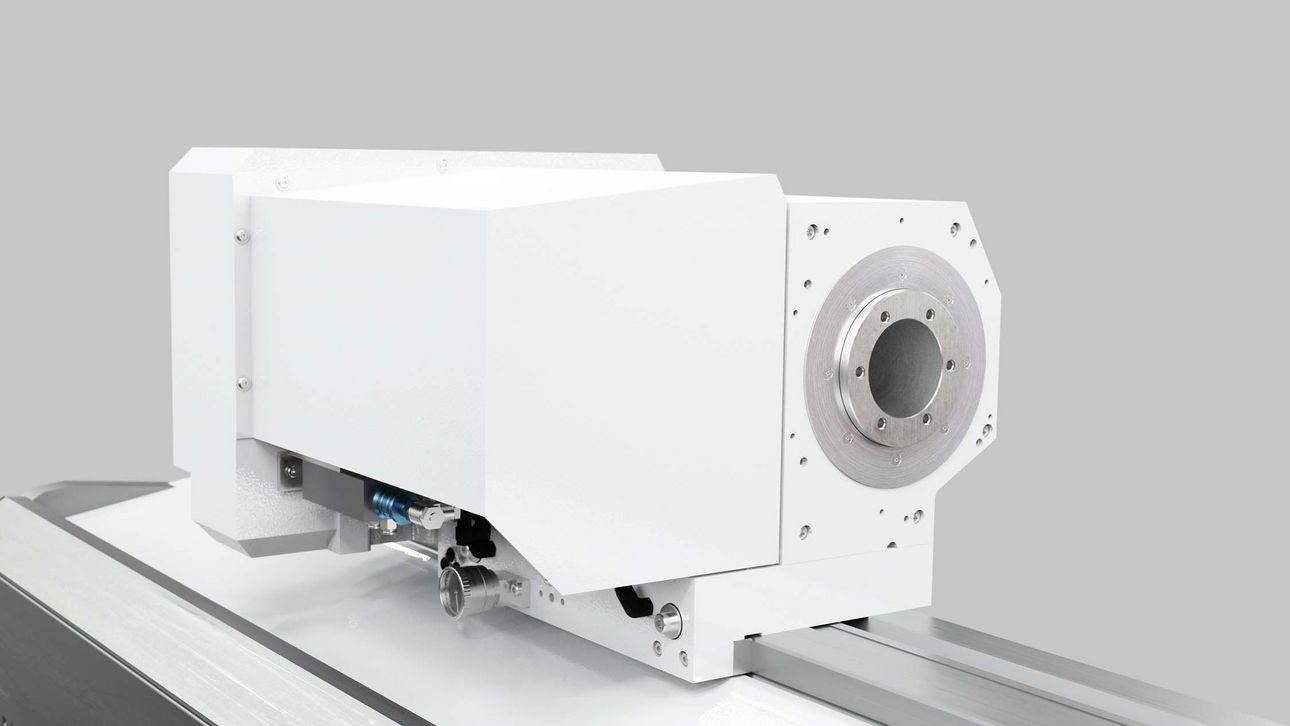

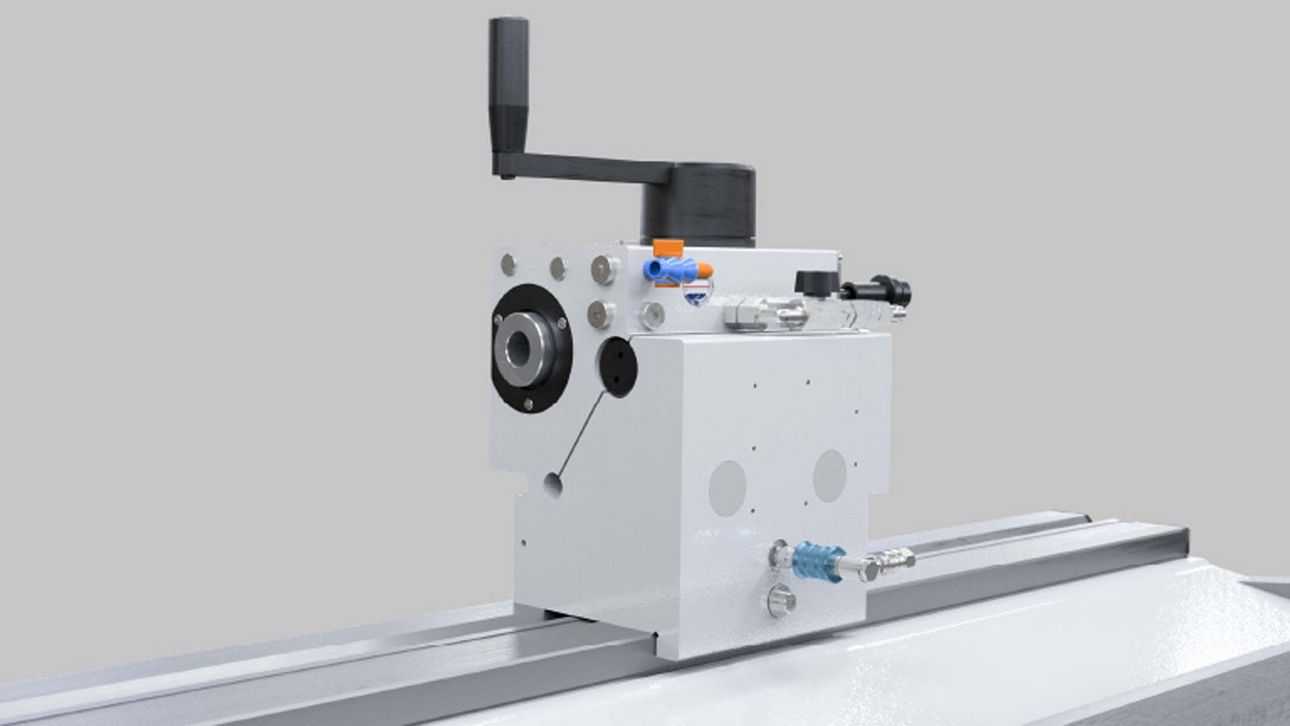

- C-axis for the workhead, enabling form and thread grinding

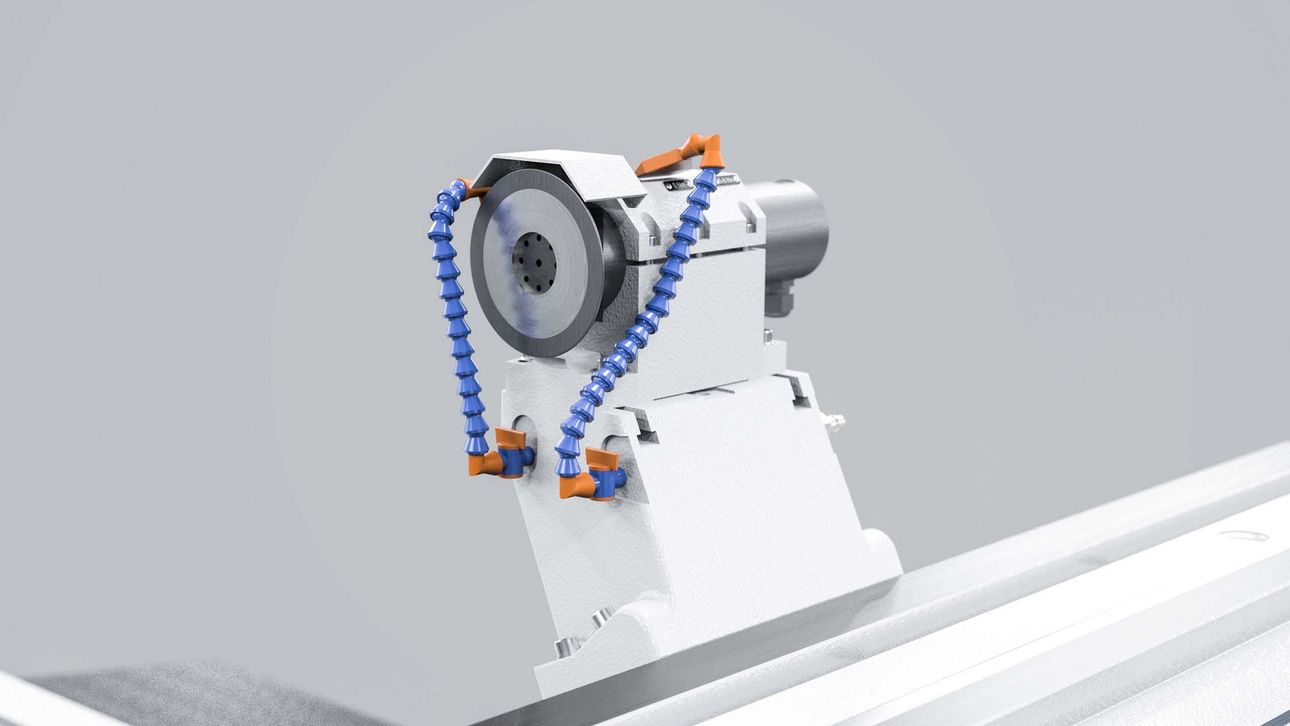

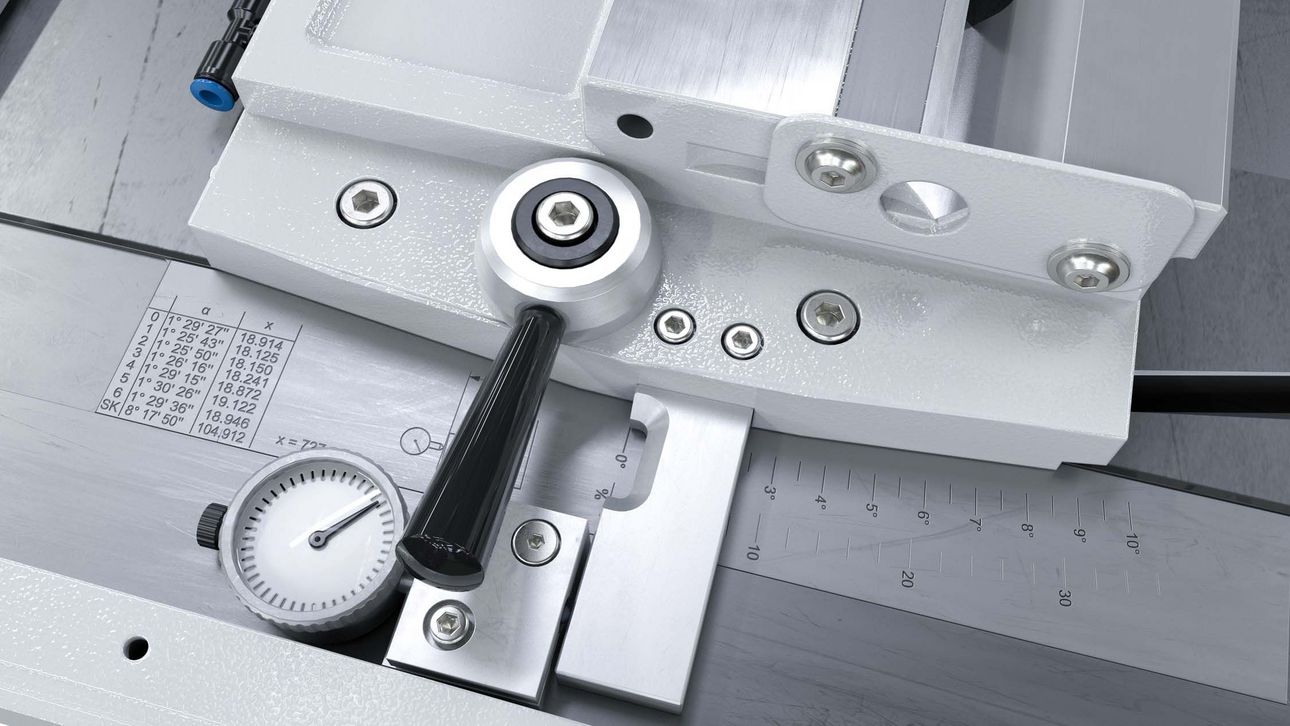

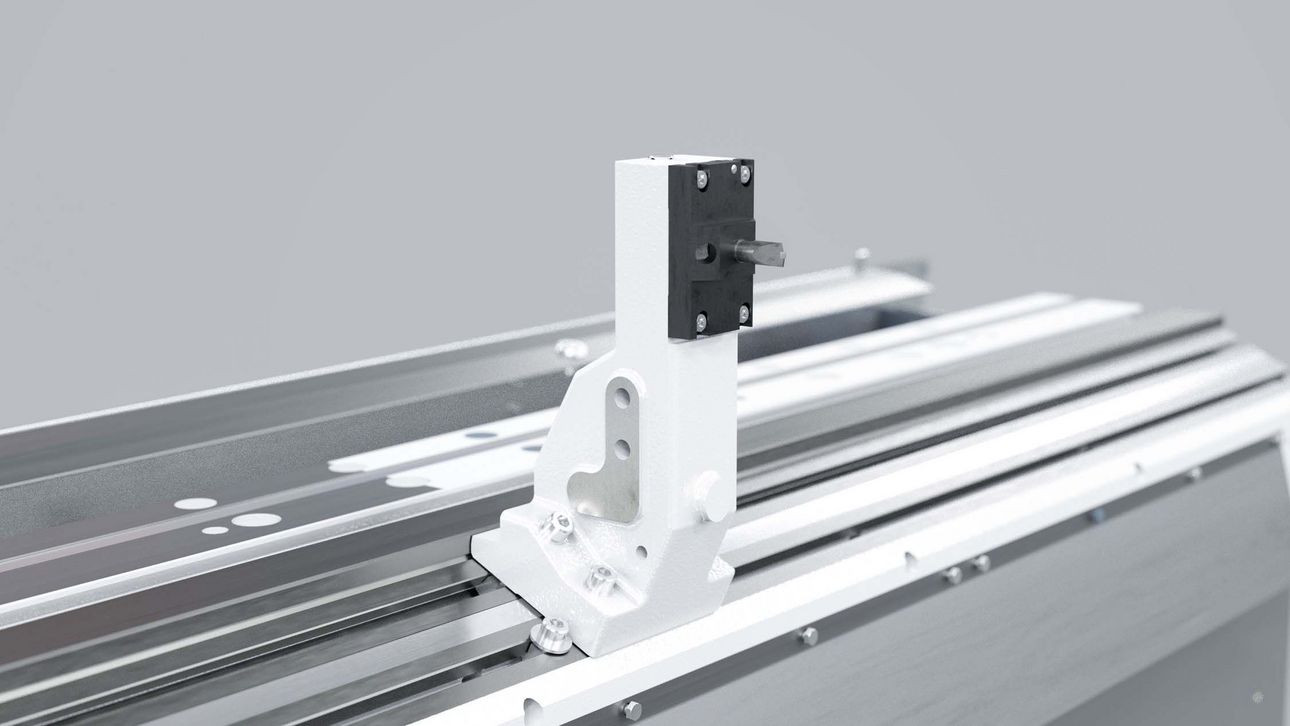

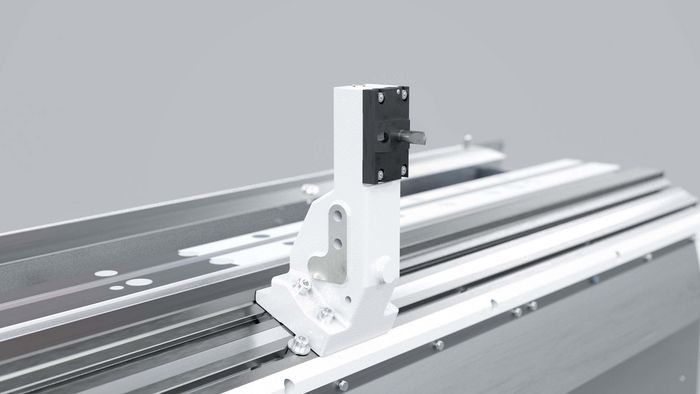

- Worktable with integrated double T-slot for dressing devices
- C.O.R.E. Panel
- Full enclosure with two sliding doors
- Granitan® S103 mineral-casting machine base
Software:
- C.O.R.E. OS operating system
- Extremely easy programming with StuderPictogramming
- Reduced setup and resetting times with STUDER Quick-Set
- Standardized interfaces for loader and peripheral devices
- Flexibly expandable with integrated software modules
- StuderWIN programming software (optional) for creating grinding and dressing programs on an external PC
Technical Data
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
500 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
255 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
400 mm
Workpiece Diameter
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
400 mm
Center Height
175 mm
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
800 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
255 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
650 mm
Workpiece Diameter
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
650 mm
Center Height
175 mm
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
1'150 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
255 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
1'000 mm
Workpiece Diameter
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
1'000 mm
Center Height
175 mm
Linear Axes
Max. Travel X
370 mm
Max. Travel Speed X
15'000 mm/min
Max. Travel Z
1'750 mm
Max. Travel Speed Z
20'000 mm/min
Spindle drive
Max. Spindle Power
8 kW
Max. Number Of Revolutions
3'200 /min
Max. Grinding Wheel Diameter
508 mm
Max. Grinding Wheel Width
80 mm
Swiveling Axes
Swiveling Range B
255 °
Swiveling Range C
∞ °
Workpiece Data
Workpiece Length
1'600 mm
Workpiece Diameter
349 mm
Max. Workpiece Weight
150 kg
Distance Between Centers
1'600 mm
Center Height
175 mm
