The HELITRONIC POWER DIAMOND 400 tool eroding machine can erode tools made of PKD/CBN material and grind tools made of high-speed steel/carbide.
It can machine tools with a diameter of 3 to 380 mm, a machining length of up to 520 mm and a piece weight of up to 50 kg.
NEW: The new, innovative LASER CONTOUR CHECK option offers an intelligent measuring system integrated directly into the tool grinding and eroding machine...
The WALTER gantry design in cast iron with its good damping properties ensures excellent tool surfaces.
Belt-driven spindle with two spindle ends
The powerful belt-driven spindle with two spindle ends can accommodate up to 3 electrodes resp. 6 grinding wheels with a maximum diameter of 254 mm and has a maximum peak power of 24 kW.
The machine has three linear axes X, Y, Z with ball screws and a maximum traverse speed of 15 m/min.

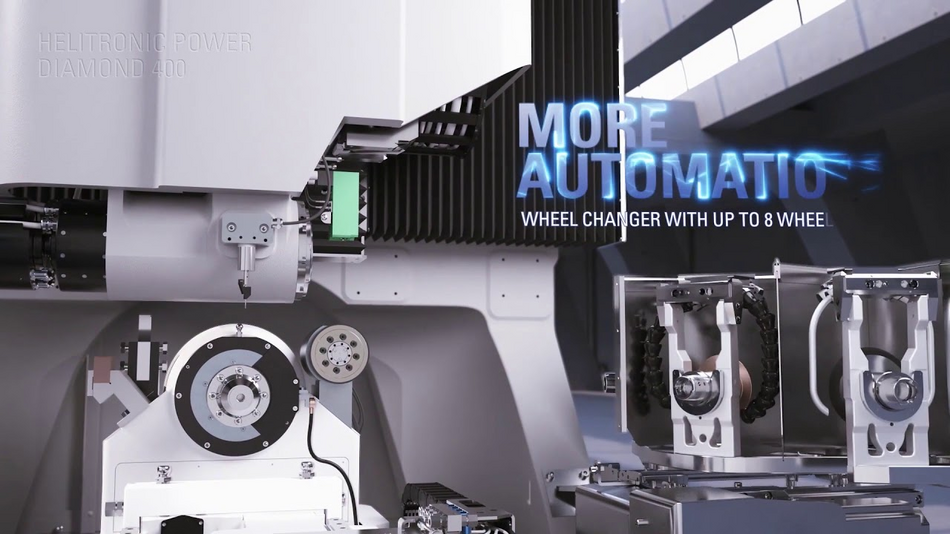

Option Grinding wheel changer 4/8
With a capacity of 4 to 8 grinding wheel adapters, the grinding wheel changer multiplies the grinding wheel capacity of the HELITRONIC POWER DIAMOND 400.
Fine Pulse Technology
The latest eroding technology for a great eroding process. Excellent surface finish and minimal chipping

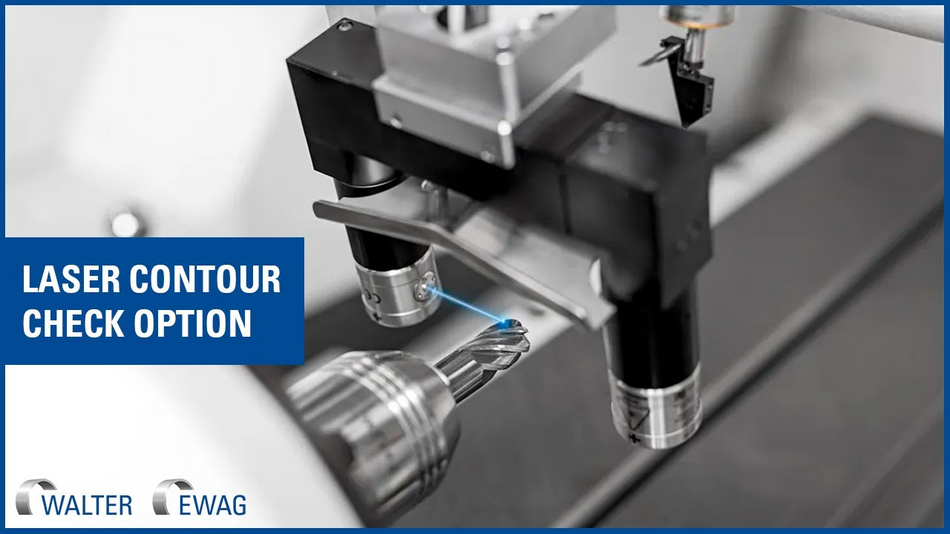

Laser Contur Check
The new, innovative Laser Contour Check option offers an intelligent measuring system integrated directly in the tool grinding and eroding machine for the highly accurate, non-contact measurement of various tool parameters on cylindrical tools.
