The HELICHECK ADVANCED optical CNC measuring machine measures even complex geometries of rotationally symmetrical tools with a repeatability of 1.5 μ. The three cameras in the measuring machine ensure 100% control of the tools. Measure your tools fully automatically, hands-free and in a highly precise manner and check all parameters on your tools.
Massive granite base
A solid granite base provides the basis for precision and accuracy due to its weight. This granite base provides vibration damping and is thermally stable. These are the prerequisites for very high measurement accuracy and reliable measurement results.
ISO 50 Spindle
The high precision ISO 50 spindle with automatic tensioning mechanism provides precise and repeatable measurements.
High-precision ball screws and linear guides guarantee outstanding positioning accuracy, which is the prerequisite for the most precise measurement results.
The HELICHECK ADVANCED optical measuring machine is equipped with fixed optical systems without rotating axes. The three camera systems are complemented by LED light sources. Touchless measurement guarantees wear free application and high stability of measurement results.
- Modular adaptor spindle
Quick change adapters can be exchanged quickly and easily without further setup time. The following quick change adapters are available: ISO/HSK/Capto/VDI.
- Light table
This option fulfills the function of a coordinate measuring device, with which flat parts are opened up as part spectrum for the measurement. Mounting is easy via auto-centering and automatically by selecting the software functions.
- Tip holder
For tools that have to be manufactured between tips due to technical requirements, the high concentricity precision must also be met during the measuring process. For this application, WALTER offers a precise tip holder.
Further Products you may be interested in

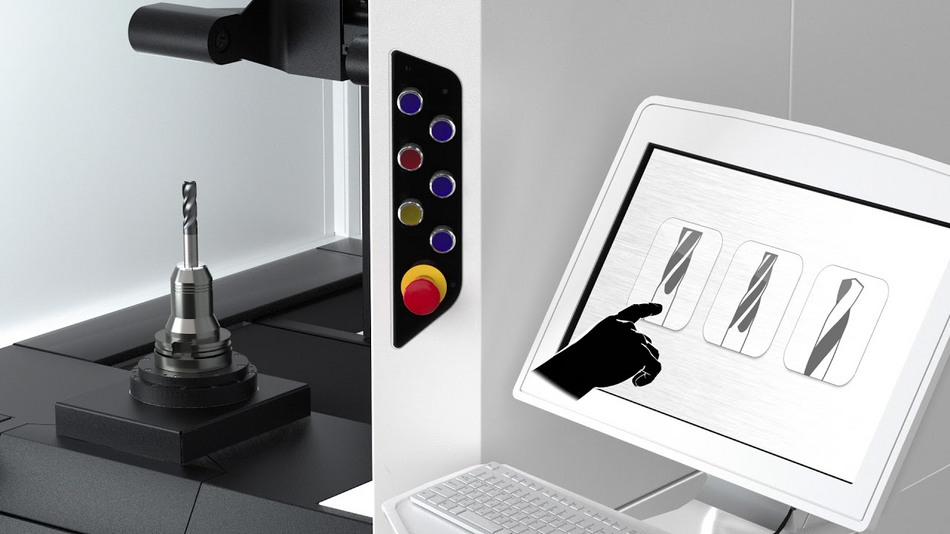

The HELICHECK 3D precision measuring machine allows you to scan tools and production parts and then generate a 3D model.
