Cost-efficient tool grinding machine with a small footprint

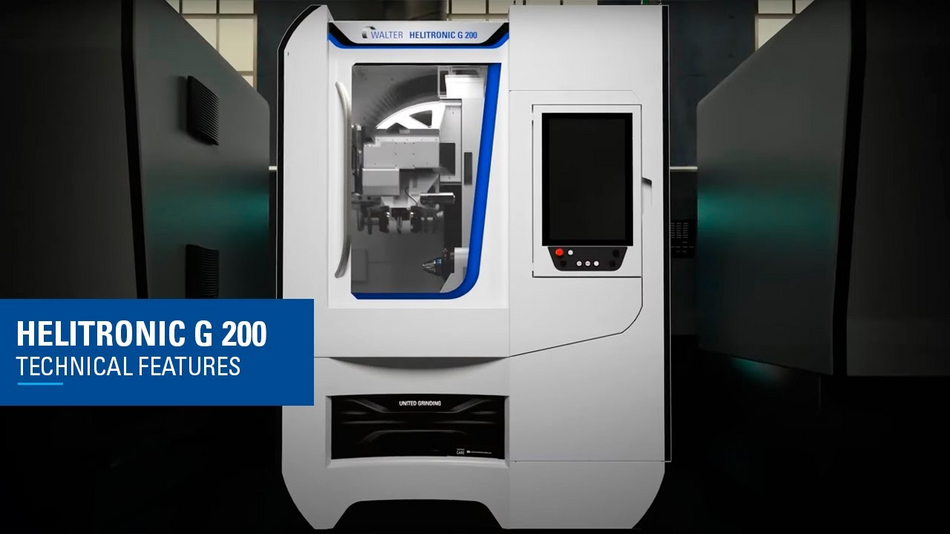

HELITRONIC G 200
Basic Data

The HELITRONIC G 200 impresses with its grinding results and with a footprint of less than 2.3 m2. It is therefore the ideal machine when space is the limiting factor. For the production and resharpening of rotationally symmetrical tools in the diameter range of 1 to 125 mm. Maximum tool length 235 mm, workpiece weight up to 30 kg.

The HELITRONIC G 200 grinds and sharpens tools in the small to medium diameter range for the metalworking and woodworking industries in a single clamping and on the smallest of footprints. The ergonomic design and the integrated and swiveling multifunction touch panel with a 21.5” monitor facilitates the operation and accessibility of the work area. The low-vibration mineral cast machine bed ensures the maximum precision in grinding results.

Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 305 mm
Max. Travel Speed X 15.000 mm/min
Max. Travel Y 218 mm
Max. Travel Speed Y 15.000 mm/min
Max. Travel Z 475 mm
Max. Travel Speed Z 15.000 mm/min

Spindle drive

Max. Spindle Power 9 kW
Max. Number Of Revolutions 10.500 /min
Max. Grinding Wheel Diameter 150 mm

Workpiece Data

Workpiece Length 0 - 235 mm
Workpiece Diameter 0 - 125 mm
Max. Workpiece Weight 30 kg

Linear Axes

Max. Travel X 12.035 inch
Max. Travel Speed X 591.891 inch/min
Max. Travel Y 8.602 inch
Max. Travel Speed Y 591.891 inch/min
Max. Travel Z 18.743 inch

Spindle drive

Max. Spindle Power 9 hp
Max. Number Of Revolutions 10500 rpm
Max. Grinding Wheel Diameter 5.919 inch

Workpiece Data

Workpiece Length 0 - 9.273 inch
Workpiece Diameter 0 - 4.932 inch
Max. Workpiece Weight 66.138 lbs
