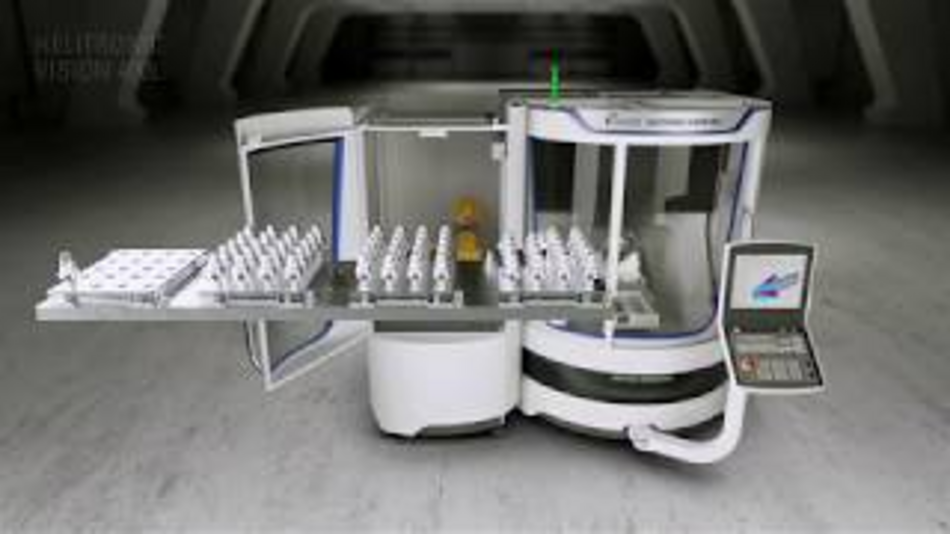

The tool grinding machine HELITRONIC VISION 400 L with C.O.R.E.-Technology produces rotationally symmetrical tools and production parts of complex geometries in high-precision production. It handles tools with a diameter of 3 to 315 mm, a tool length up to 420 mm and a piece weight of up to 50 kg.
Now NEW: The new, innovative LASER CONTOUR CHECK option offers an intelligent measuring system integrated directly into the tool grinding and eroding machine...
Mineral cast gantry design
The WALTER mineral cast gantry design for optimal tool surfaces. The machine provides you with excellent vibration damping, temperature sensitivity, drive dynamics and ultimately grinding precision.
All five CNC axes are equipped with linear drives and are controlled by the integrated high resolution measurement systems. They create exact movements while at the same time creating high dynamics.
The HELITRONIC VISION 400 L has a rotary axis C with a torque drive for very high accuracy and durability.
The rotary axis A as a torque motor with a maximum of 750 min-1. For extended functionality, such as precise profile grinding or background lines.
The tool grinding machine is equipped with a powerful direct driven motor spindle with a spindle end with a liquid cooling system. Spindle performance is 33 KW.
LASER CONTOUR CHECK
The new, innovative Laser Contour Check option offers an intelligent measuring system integrated directly in the tool grinding and eroding machine for the highly accurate, non-contact measurement of various tool parameters on cylindrical tools.
Further Products you may be interested in
HELITRONIC VISION 700 L
The high-end HELITRONIC VISION 700 L tool grinding machine produces and re-sharpens long tools or production parts.
The high-end HELITRONIC MICRO tool grinding machine produces and sharpens rotationally symmetrical tools and production parts with smaller diameters.
