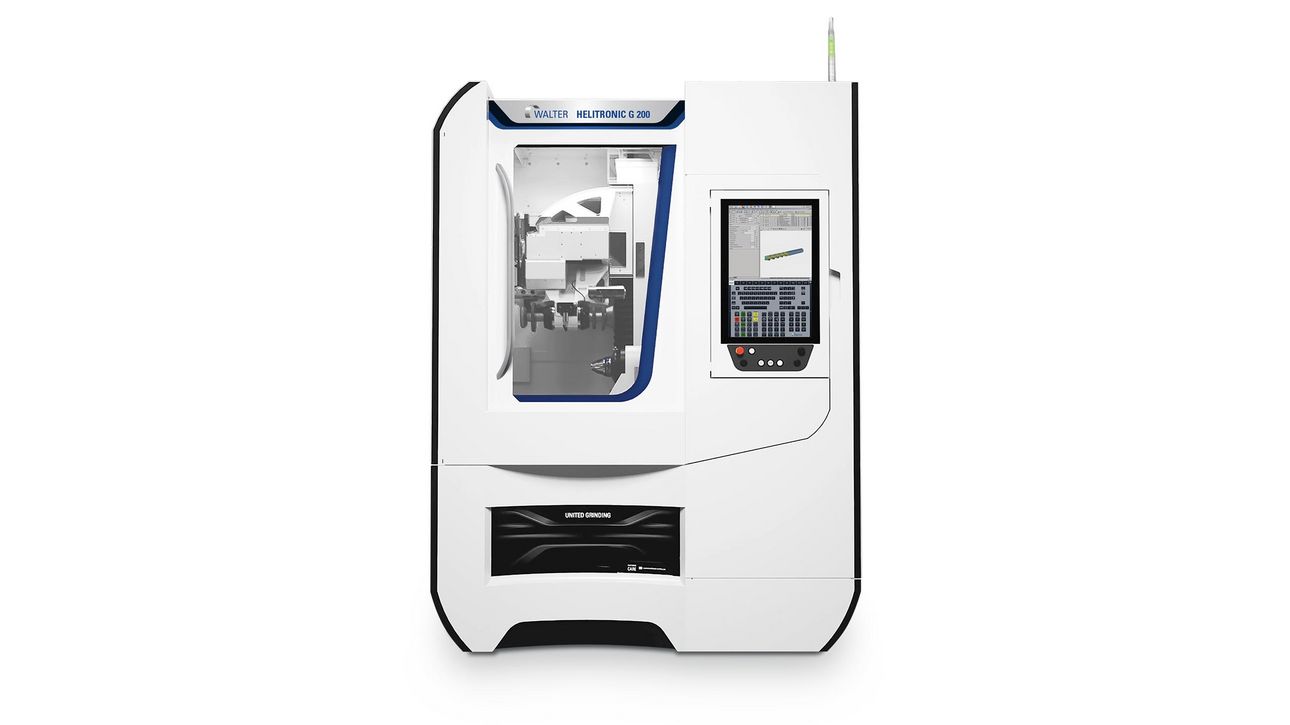

WALTER is introducing its latest addition to the product range during a VIP-event China end of October 2018: The HELITRONIC G 200 tool grinding machine with innovative machine concept on a small footprint.

For the first time, WALTER has developed this new machine with a German-Chinese project team.

On a floor space of less than 2,3 sqm, the cost-efficient HELITRONIC G 200 offers tool grinding at its best: Production and re-sharpening of rotationally symmetrical tools in the diameter range of 1 to 125 mm, with a maximum tool length of 235 mm and a tool weight up to 12 kg. Maximum wheel diameter is 150 mm.

The ergonomic design and the integrated and swivelling multifunction touch panel with a 21.5” monitor facilitates the operation and accessibility of the work area. A low-vibration solid mineral cast C-frame construction offers high damping capabilities and temperature stability for maximum precision in grinding results. The linear axes X, Y, Z are build according to the high WALTER quality standard. The rotating A and C axes are equipped with torque motors and provide an unbeatable lifetime with minimum service effort. For maximum flexibility, an optional loading system is available: The “Top loader” is directly integrated into the working envelope of the machine for easy access and therefore requires no additional space. Suitable for tools from diameter 3 mm to 16 mm, the maximum tool capacity of the loading system is for example 500 tools at a diameter of 3 mm. The Top loader uses standard robot pallets and an automated electrical teaching.

The HELITRONIC G 200 uses the worldwide proven grinding software HELITRONIC TOOL STUDIO from WALTER, which provides ease of programming with the greatest possible flexibility.
