CIMT 2021 Products
The compact 5 axis grinding center is ideal for grinding complex geometries, particularly in the case of guide and rotor blades as well as heat shields for aircraft turbines.
Building on the experience and quality of the very successful PLANOMAT HP, the latest generation offers excellent dynamics and improved performance.
The S31 is a cylindrical grinding machine for small to large workpieces It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs).
The S131 is a radius internal cylindrical grinding machine that is especially suitable for grinding complex workpieces from very hard materials The maximum swing diameter is 300mm (11.7") and the maximum workpiece weight is 100kg (220lbs).
HELITRONIC POWER DIAMOND 400
The HELITRONIC POWER DIAMOND 400 tool eroding machine can erode tools made of PKD/CBN material and grind tools made of high-speed steel/carbide.
HELICHECK PLUS is the universally used measuring machine for both micro-tools and tools in the standard range. Measurements for transmitted light and incident light are performed by the HELICHECK PLUS operator-independent, CNC-controlled and μ-precise.

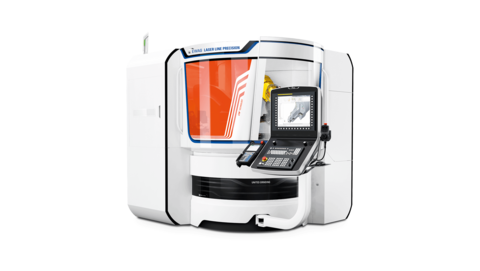

LASER LINE PRECISION
The LASER LINE PRECISION laser processing machine handles ultra-hard materials such as PCD, CVD-D, CBN and MKD by laser. It can accommodate rotation-symmetric tools of up to 200 mm in diameter and up to 250 mm in length and indexable inserts from 3 mm internal and up to 50 mm external diameter.
