ecoGrinder Extremely cost-effective High precision grinding machine suitable for wide application

ecoGrinder

Basic Data

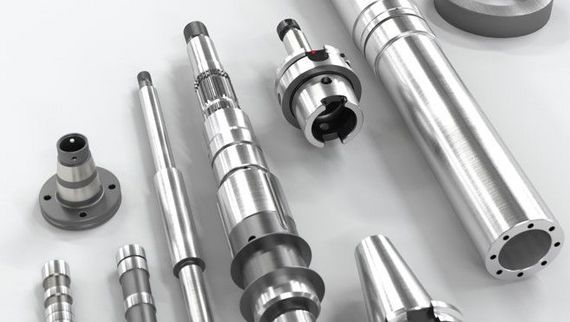

ecoGrinder has strong versatility and is suitable for grinding various high-precision workpieces in single and mass production.
With distance between two centers of 650/1000 mm and center height is 175 mm, STUDER ecoGrinder can process workpieces weighing up to 80/120 kg.

If you think that the Studer machine will exceed your budget, we recommend ecoGrinder with high performance but low cost. Thanks to the StuderPicto Program, making programming simple and fast. To a great extent, the Granitan® artificial granite machine bed balances the influence of temperature fluctuation to ensure the stable precision of grinding parts.

Images
Hardware / Software

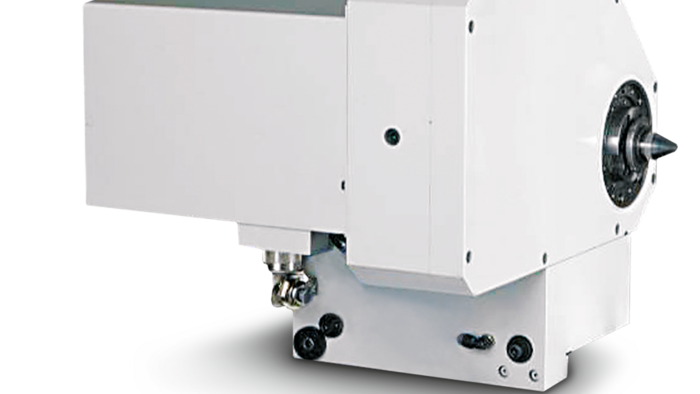

Hardware:

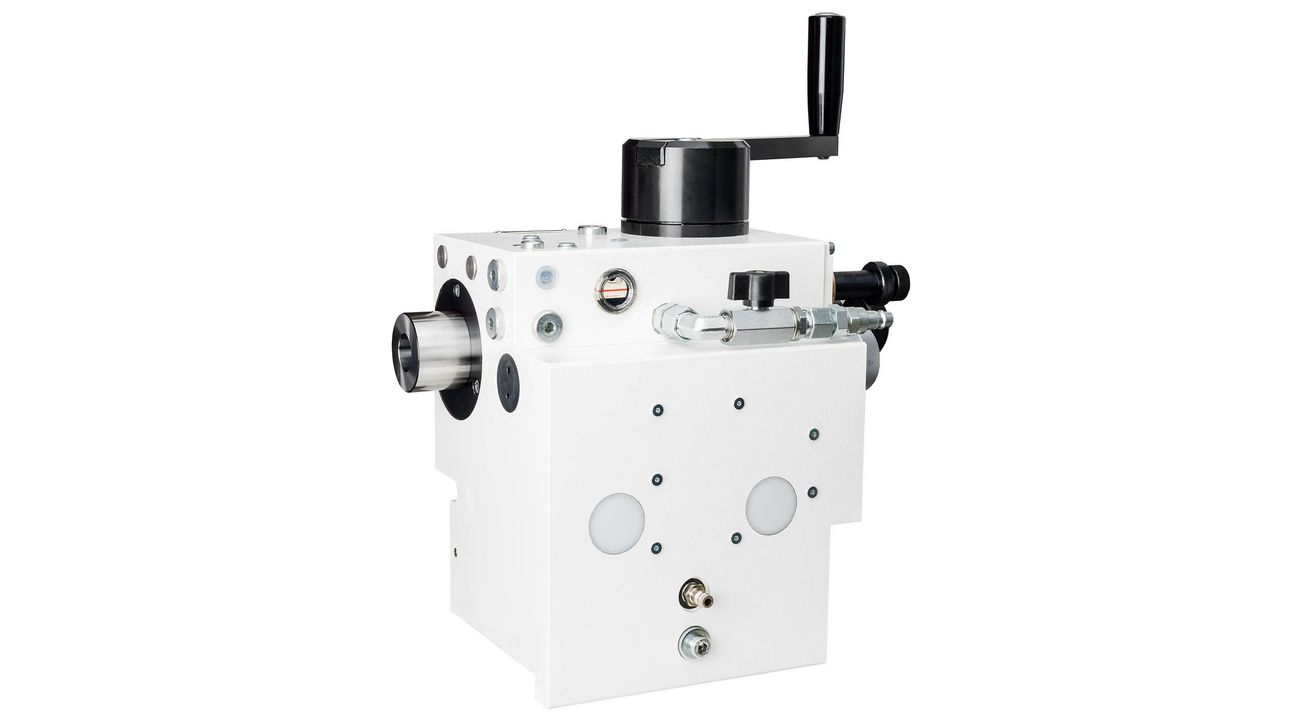

  • wheel head (option):
    -  Turret wheelhead with one exterior and one interior grinding spindle. Manually swivel with 2.5° Graduation

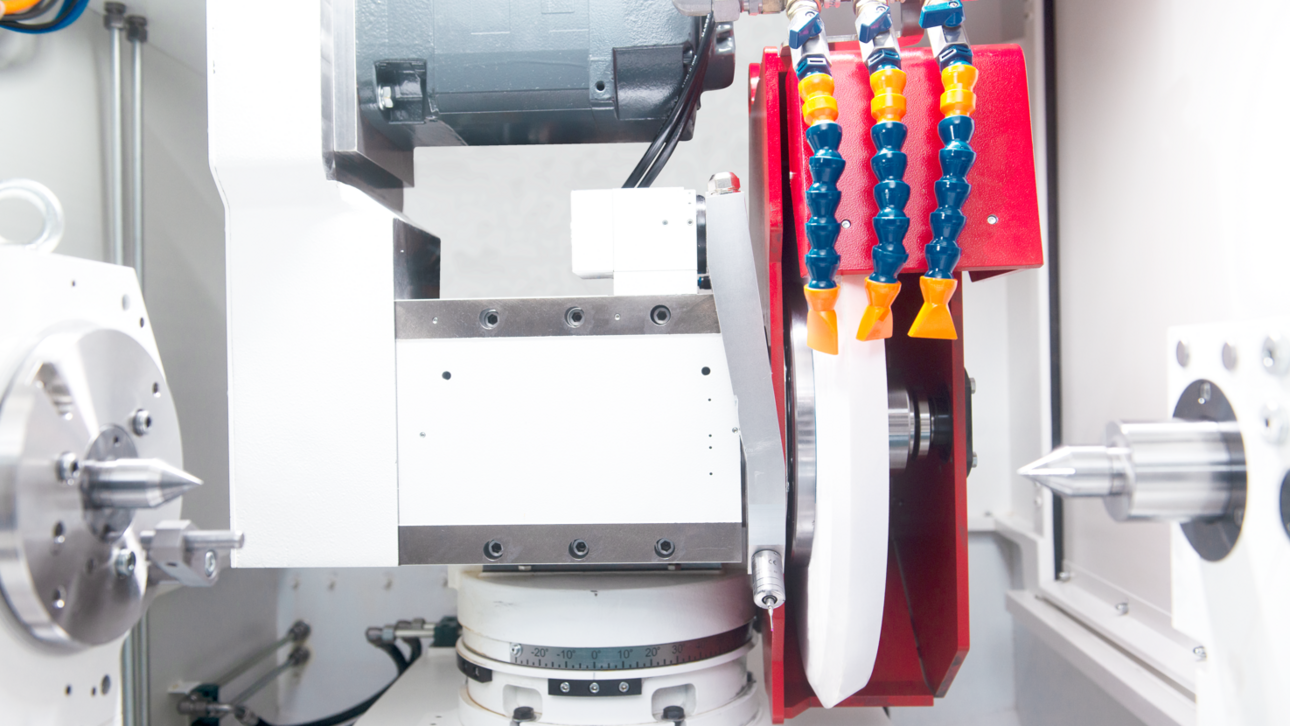

    -  External wheelhead with grinding wheel on the right, 0° / 15° / 30°,

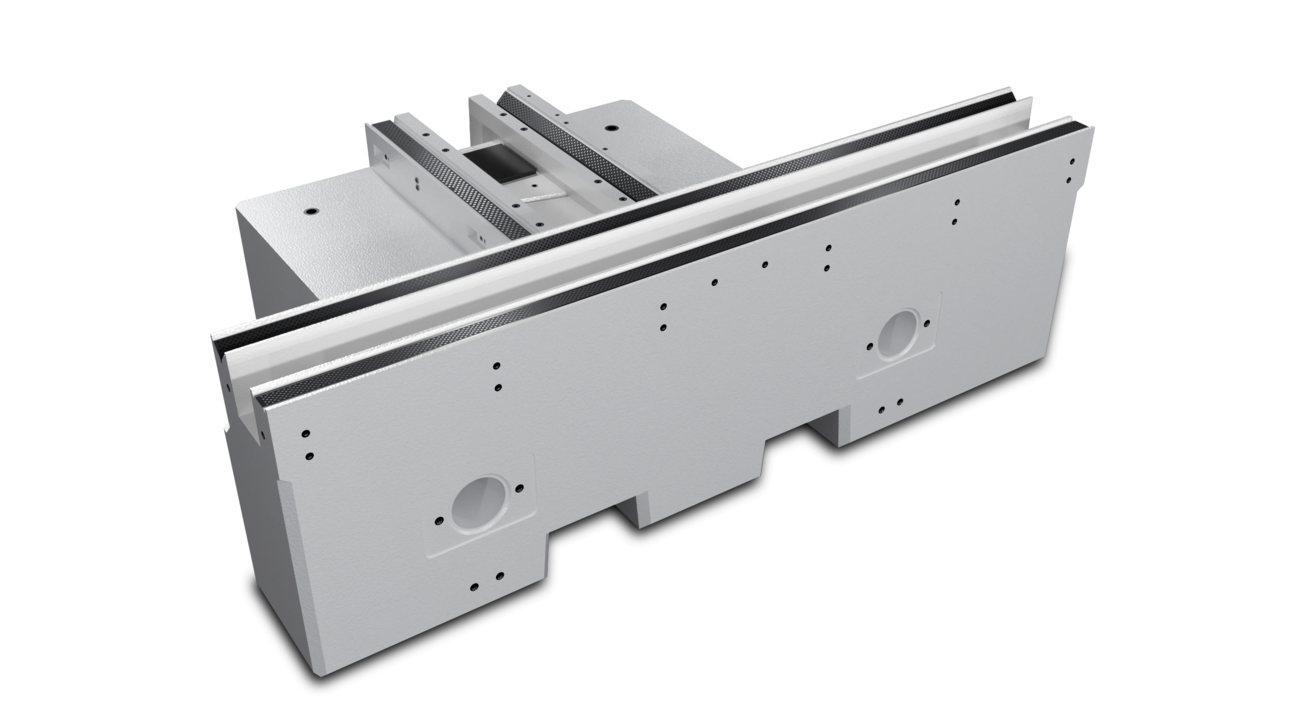

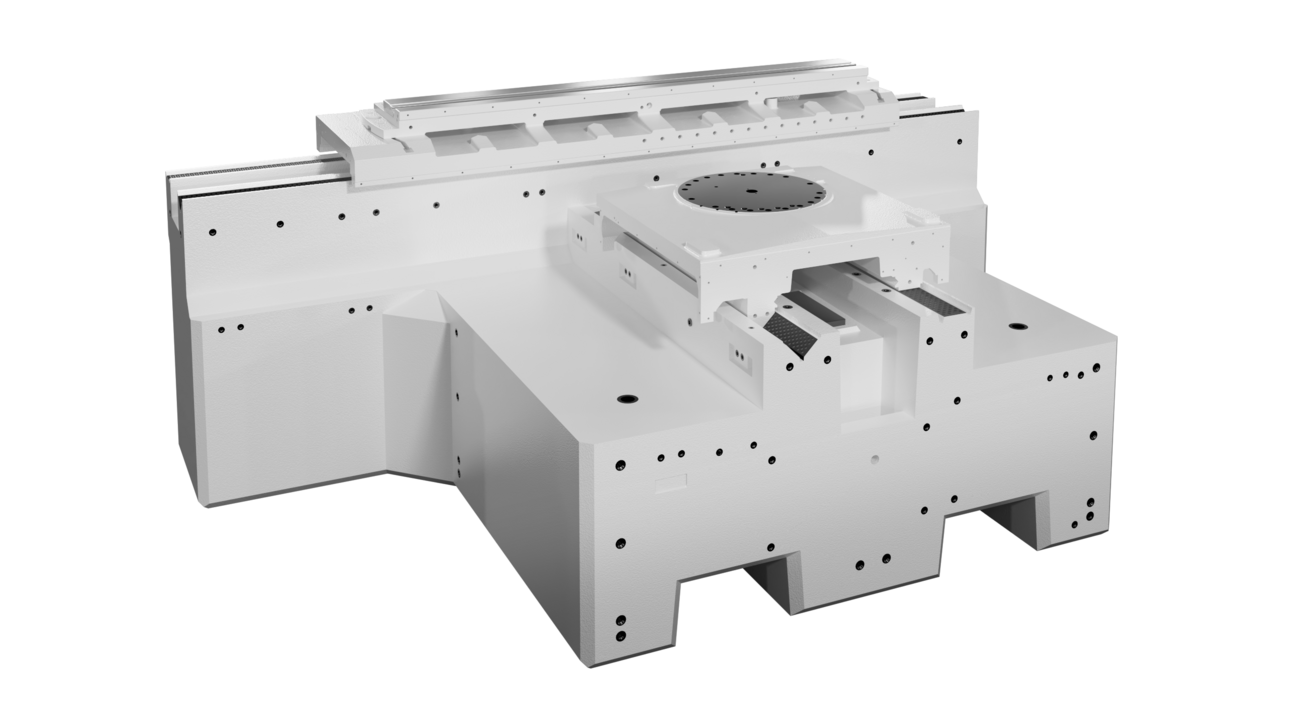

  • The Granitan® artificial granite machine bed

Software:

  • Using the icon programming interface, programming is easy to learn
  • StuderGRIND programming software for creating, grinding and dressing programs on an external PC
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 285 mm
Max. Travel Speed X 5000 mm/min
Max. Travel Z 1150 mm
Max. Travel Speed Z 10000 mm/min

Spindle drive

Max. Spindle Power 11 kW
Max. Grinding Wheel Diameter 500 mm
Max. Grinding Wheel Width 110 mm

Swiveling Axes

Swiveling Range B 195 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 650 mm
Workpiece Diameter 0 - 349 mm
Max. Workpiece Weight 80 kg
Distance Between Centers 650 mm
Center Height 175 mm

Workpiece Data

Workpiece Length 0 - 25.6 inch
Workpiece Diameter 0 - 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 25.6 inch
Center Height 6.9 inch

Linear Axes

Max. Travel X 285 mm
Max. Travel Speed X 5000 mm/min
Max. Travel Z 1150 mm
Max. Travel Speed Z 10000 mm/min

Spindle drive

Max. Spindle Power 11 kW
Max. Grinding Wheel Diameter 500 mm
Max. Grinding Wheel Width 110 mm

Swiveling Axes

Swiveling Range B 195 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 0 - 1000 mm
Workpiece Diameter 0 - 349 mm
Max. Workpiece Weight 120 kg
Distance Between Centers 1000 mm
Center Height 175 mm
