Basic Data

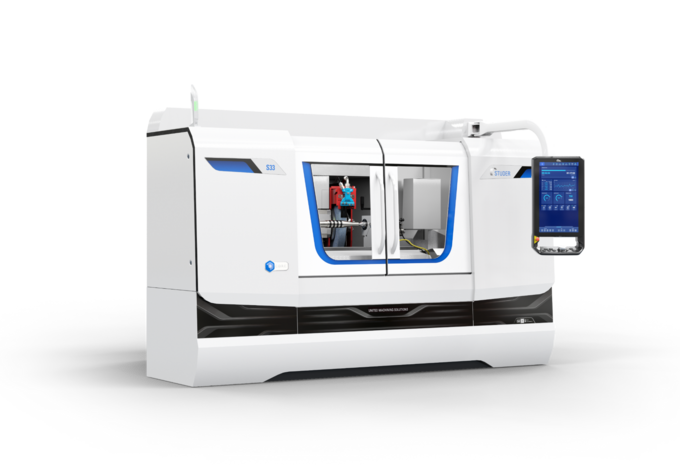

The S33 is a CNC universal cylindrical grinding machine for the individual and batch production of medium-sized workpieces. It has a distance between centres of 400mm (15.7") / 650mm (25.6") / 1,000mm (40") / 1,600mm (63") and a centre height of 175mm (6.9"). It can machine workpieces with a maximum weight of 150kg (330lbs).

Changing over from grinding between centres to live spindle grinding is particularly easy on this machine. The new wheelhead with two motor spindles enables grinding of even more complex workpiece geometries in a single clamping. Its foundation is a machine base made of solid Granitan® S103.

Images
Hardware / Software

Hardware:

  • Wheelhead versions:
    - Turret wheelhead with up to 2 external grinding spindles and 1 internal grinding spindle. Automatic swivel with 1° Hirth serration.
    - External wheelhead with grinding wheel right, 0° / 15° / 30°
  • Frequency-controlled motor grinding spindles for external and internal grinding
  • C-axis for the workhead, enabling form and thread grinding
  • Worktable with integrated double T-slot for dressing devices
  • C.O.R.E. Panel
  • Full enclosure with two sliding doors
  • Granitan® S103 mineral-casting machine base

Software:

  • C.O.R.E. OS operating system
  • Extremely easy programming with StuderPictogramming
  • Reduced setup and resetting times with STUDER Quick-Set
  • Standardized interfaces for loader and peripheral devices
  • Flexibly expandable with integrated software modules
  • StuderWIN programming software (optional) for creating grinding and dressing programs on an external PC
Technical Data
kg / cm
lb / inches

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 500 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 255 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 400 mm
Workpiece Diameter 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 400 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 19.7 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 255 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 15.7 inch
Workpiece Diameter 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 15.7 inch
Center Height 6.9 inch

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 800 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 255 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 650 mm
Workpiece Diameter 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 650 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 31.5 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 255 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 25.6 inch
Workpiece Diameter 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 25.6 inch
Center Height 6.9 inch

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 1'150 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 255 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 1'000 mm
Workpiece Diameter 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 1'000 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 45.3 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 255 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 39.4 inch
Workpiece Diameter 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 39.4 inch
Center Height 6.9 inch

Linear Axes

Max. Travel X 370 mm
Max. Travel Speed X 15'000 mm/min
Max. Travel Z 1'750 mm
Max. Travel Speed Z 20'000 mm/min

Spindle drive

Max. Spindle Power 8 kW
Max. Number Of Revolutions 3'200 /min
Max. Grinding Wheel Diameter 508 mm
Max. Grinding Wheel Width 80 mm

Swiveling Axes

Swiveling Range B 255 °
Swiveling Range C ∞ °

Workpiece Data

Workpiece Length 1'600 mm
Workpiece Diameter 349 mm
Max. Workpiece Weight 150 kg
Distance Between Centers 1'600 mm
Center Height 175 mm

Linear Axes

Max. Travel X 14.6 inch
Max. Travel Speed X 590 inch/min
Max. Travel Z 68.9 inch
Max. Travel Speed Z 787 inch/min

Spindle drive

Max. Spindle Power 10 hp
Max. Number Of Revolutions 3'200 rpm
Max. Grinding Wheel Diameter 20 inch
Max. Grinding Wheel Width 3.15 inch

Swiveling Axes

Swiveling Range B 255 deg
Swiveling Range C ∞ deg

Workpiece Data

Workpiece Length 63 inch
Workpiece Diameter 13.75 inch
Max. Workpiece Weight 330 lbs
Distance Between Centers 63 inch
Center Height 6.9 inch
